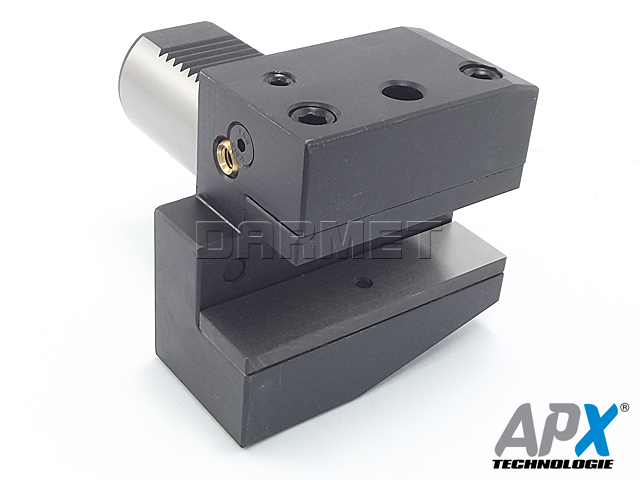

B2 TYP 1114L

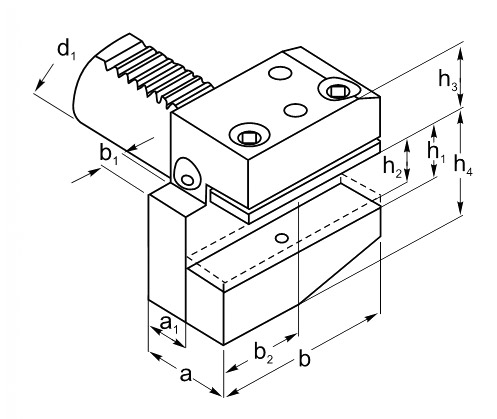

| Type - size | d1 | a | a1 | b | b1 | b2 | h1 | h2 | h3 | h4 |
|---|---|---|---|---|---|---|---|---|---|---|
| B2.D16.H12 | 16 | 24 | 13 | 42 | 5,0 | 23,0 | 12 | 10 | 20,0 | 22 |
| B2.D20.H16 | 20 | 30 | 16 | 55 | 7,0 | 30,0 | 16 | 12 | 25,0 | 30 |
| B2.D30.H20 | 30 | 40 | 22 | 70 | 10,0 | 35,0 | 20 | 16 | 28,0 | 38 |
| B2.D40.H25 | 40 | 44 | 22 | 85 | 12,5 | 42,5 | 25 | 20 | 32,5 | 48 |
| B2.D50.H32 | 50 | 55 | 30 | 100 | 16,0 | 50,0 | 32 | 25 | 35,0 | 60 |
| Accessories |
|||||
 |
shim VDI |  |
shim VDI |  |
coolan jets VDI |
CHWYT VDI (DIN 69880)
| d1 h6 | L1 ± 0,3 | d2 | d3 | h1 max | h2 ± 0,1 | L2 ± 0,05 | L3 min | L4 +1 | r1 ± 0,02 |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 32 | H6 | 40 | 12 | 15,0 | 12,7 | 16 | 2 | 14,5 |
| 20 | 40 | H6 | 50 | 16 | 18,0 | 21,7 | 24 | 2 | 18,0 |
| 30 | 55 | H8 | 68 | 20 | 27,0 | 29,7 | 40 | 2 | 25,0 |
| 40 | 63 | H8 | 83 | 25 | 36,0 | 29,7 | 40 | 3 | 32,0 |
| 50 | 78 | H8 | 98 | 32 | 45,0 | 35,7 | 48 | 3 | 37,0 |
 |
|
| A) Use of radial toolholders, clockwise spindle rotation. | B) Use of radial toolholders, counterclockwise spindle rotation. |
